- [High-quality Motor] - This is a 48V 1000W brush electric bicycle conversion kit. It mainly contains a motor, a controller and other conversion accessories. This conversion kit is mainly used to convert small go-karts, beach bikes, EVO scooters, and small electric motorcycles into electric ones.
- [Powerful Motor] - This motor is a 48V 1000W brush motor for efficient operation. The powerful motor has a rated speed of 3000rpm so that it can help you drive faster.
- [3 Speed Gears] - The controller has three speed gears to adjust the speed of the motor. You can adjust the appropriate speed to ensure safe driving.
- [Complete Kit] - This brush electric bicycle conversion kit contains most of the accessories for converting your bike. So you don't need to buy these accessories separately. It will be convenient for you.
- [Best Sercive] - If you have any questions, please contact us. We will reply your within 24 hours.
Key Features
High-quality Motor: This electric motor equipped with reliable metal housing protects the internal circuit and has good heat dissipation performance with the holes to avoid thermal overload. So it has a long service life.
Lockable: After being attached, this kit can be locked with the complimentary key to prevent others from stealing your bike. The handle is pre-loaded with a keyhole for smooth opening and locking.
Handles: This set comes with two very comfortable handles. One of them is the drive handle. Twist it and then the electric bike will move forward. And the driving speed can be controlled by turning the handle.
LCD: This drive handle has an LCD that shows the power of the e-bike clearly. So you will be able to recharge your batteries in time with it.
Chain: We provide a T8F chain for you to convert. The thickened chain is not only strong and durable but also smooth to drive.
Specification
Color: Black, Silver
Material: Copper, Iron and Aluminum
Chain Model: T8F
Motor Model: MY1020
Controller Model: LK-07
Voltage:48V
Power:1000W
Motor Type: Brush Motor
Unload Current: 2.2A
Rated Current: 26.7A
Unload Speed: 3700 rpm
Rated Speed: 3000 rpm
Rated Torque: 3.2N·m
Motor Efficiency: ≥78%
Motor Length: 15cm/5.91inch
Motor Shaft Length: 2.4cm/0.94inch
Motor Diameter: 10.2cm/4.01inch
Motor Screw Holes Distance: 9.489-9.511cm/3.736-3.744inch
Motor Height: 11cm/4.33inch
Motor Stand Screw Holes Distance (Horizontal): 5.6cm/2.2inch
Motor Stand Screw Holes Distance (Vertical): 10.2cm/4.01inch
Package Size: 29*17*19cm/11.4*6.7*7.5inch
Gross Weight: 6.2kg/13.7lbs

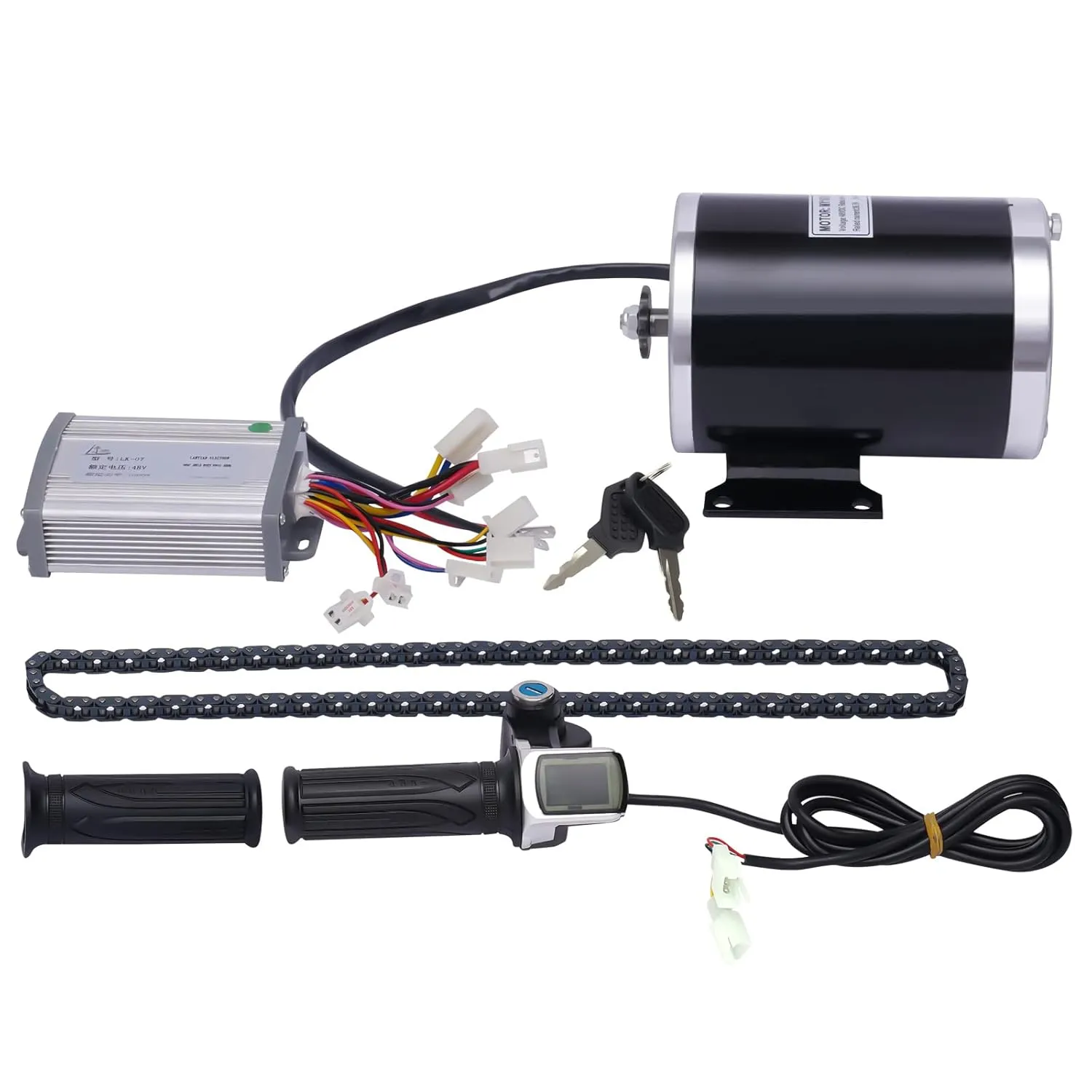

Package Included
1* Brush Motor
1* Controller
1* Drive Handle
1* Regular Handle Cover
1* Chain
2* Keys
- Item Weight : 13.67 Pounds
- Date First Available : September 5, 2022
- Manufacturer : LIEASTGY
- Country of Origin : China
