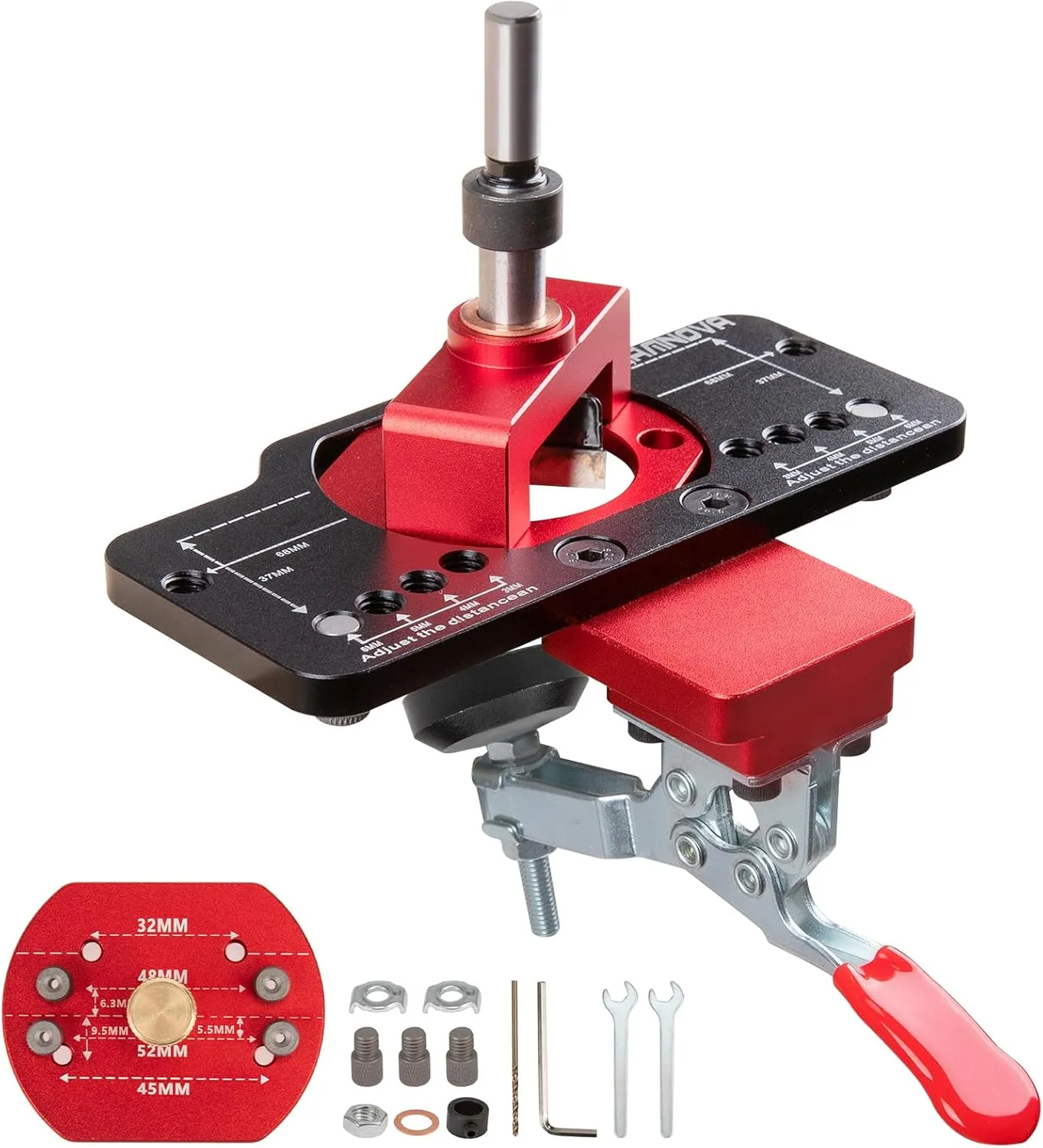

• **Drill Guide Locator**: Our hinge boring jig includes a versatile drilling guide that is compatible with most hinges on the market, including sizes 32mm, 45mm, 48mm, and 52mm. It accommodates both American and European standards.
• **Adjustable**: The BEAMNOVA cabinet hinge jig offers multiple position settings, allowing you to adjust the hinge hole edge distance to 3, 4, 5, or 6mm. It also provides flexibility in setting the depth of the hinge cup from 10 to 15mm, ensuring a perfect fit for your cabinet doors.
• **68mm Hole Center to Edge**: This hinge drilling jig features an end stop pointer set screw, precisely positioned 68mm from the center of the hinge hole, ensuring consistent and accurate drilling.
• **How to Use**: 1. Install a 35mm hole saw and secure the limit ring. 2. Adjust the black fixing tool on the fixture to fit plate sizes between 15-25mm. 3. Attach the locator and position it in the box. 4. Tighten the drill handle and press evenly to achieve a depth of 10-15mm. 5. Drill appropriate screw holes on both sides according to the hinge size.
• **Durable Aluminum Alloy**: Crafted from high-quality aluminum alloy, the BEAMNOVA door hinge jig is rust-proof and built to last for years. Its precision manufacturing ensures accurate positioning, and the sharp drill bits make it an essential tool for installing various cabinet door hinges.
